Nd:YAG

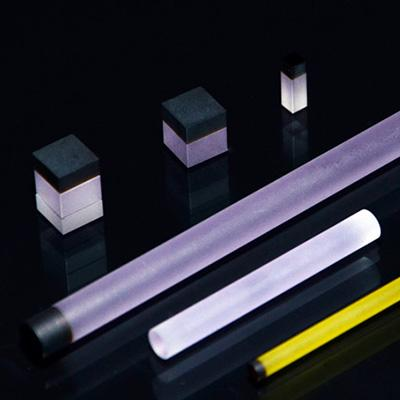

Neodymium Doped Yttrium Aluminum Garnet (Nd:YAG ) Crystal
Specification
| Material | Nd:YAG |
| Nd dopant concentration | 0.5-1.2atm% |
| Diameter | 3-14mm |
| Length | 0.5-160mm |
| Orientation | <111>crystalline direction |
| Flatness | lambda/8@633nm |
| Surface quality | 20/10 |
| Parallelism | <10” |
| Perpendicularity | <5′ |
| Wavefront distortion | <lambda/10@633nm |
| Clear aperture | >90% |
| Coating | according to customer’s request |
