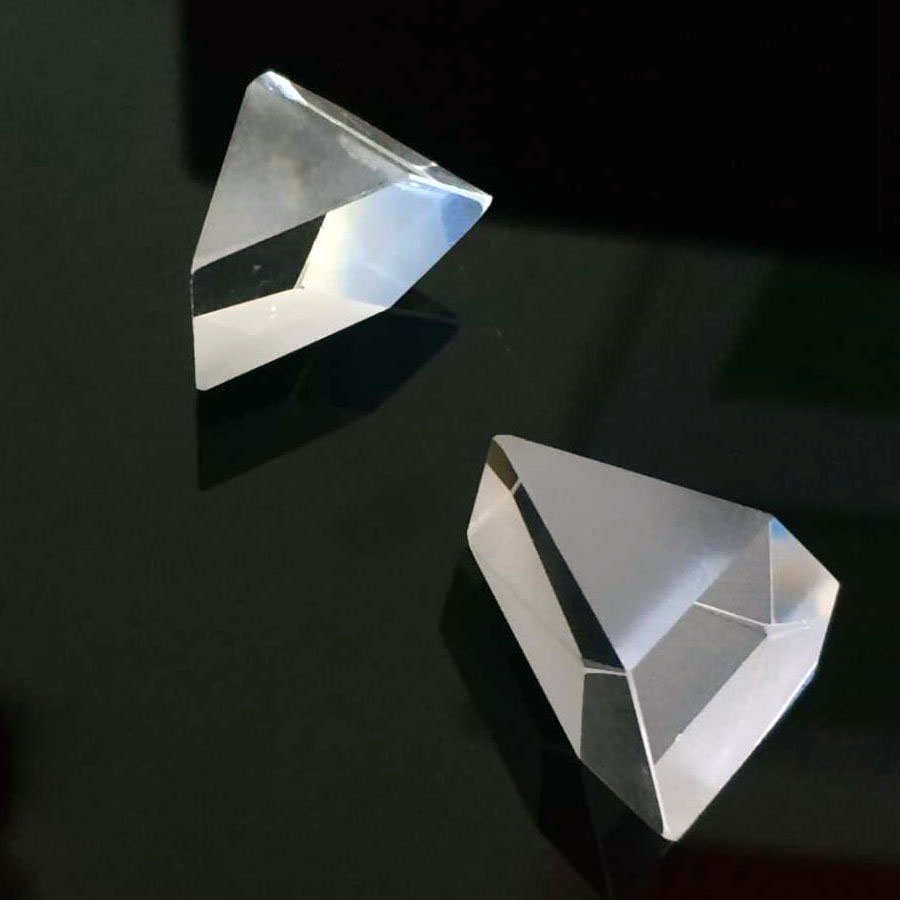

Roof Prism
Specification:
| Material | BK7 grade A optical glass |
| Dimension Tolerance | +0.0, -0.2 mm |
| Clear Aperture | >85% |
| Surface Quality | 60-40 scratch and dig |
| Roof Angle Tolerance | < 1 arc minute |
| Flatness | λ/2 @ 632.8 nm |
| Protective Bevel | 0.25 mm x 45° |

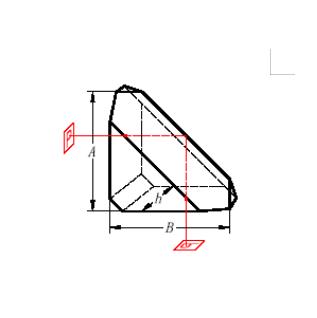

BK7 Roof Prism Standard Products:
|
Part No. |
A (mm) |
B (mm) |
h (mm) |
|
TRP101 |
15.0 |
15.0 |
12.0 |
|
TRP102 |
23.0 |
23.0 |
18.0 |
|
TRP103 |
31.5 |
31.5 |
23.0 |
Note: Other size, material and coatings are available upon request.
