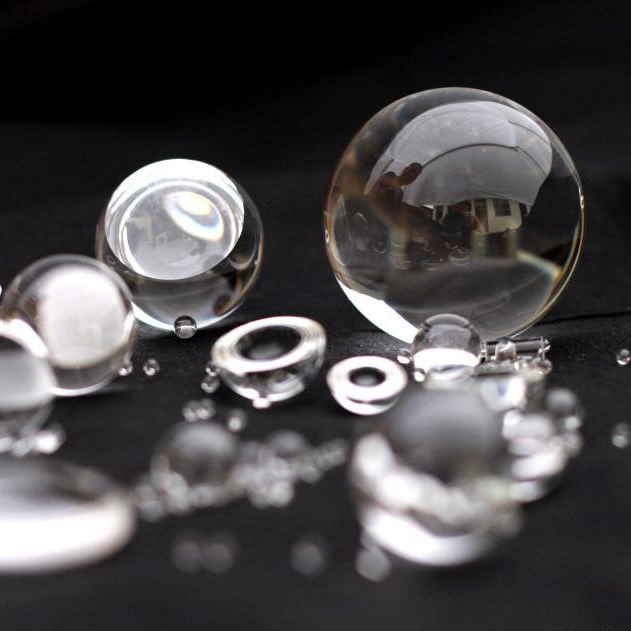

Ball Lens

Capacity:

Material: Optical glass, Fused silica, Silicon, Germanium, CaF2, MgF2, Sapphire, ZnSe, ZnS

Diameter: 0.2 to 500 mm

Diameter Tolerance: +0/-0.02 mm

Sphericity:±0.001mm

Surface Quality: 10-5

Product Detail

Specification:

Material	BK7 grade A, B270, UV grade Fused Silica, Sapphire etc.
Diameter Tolerance	±0.05 mm (Standard), up to +0.000/-0.002 mm
Sphericity	±0.005 mm (Standard), up to +/-0.6 um
Surface Quality	60-40 S/D (Standard), up to 20-10 S/D
Coating	uncoated
