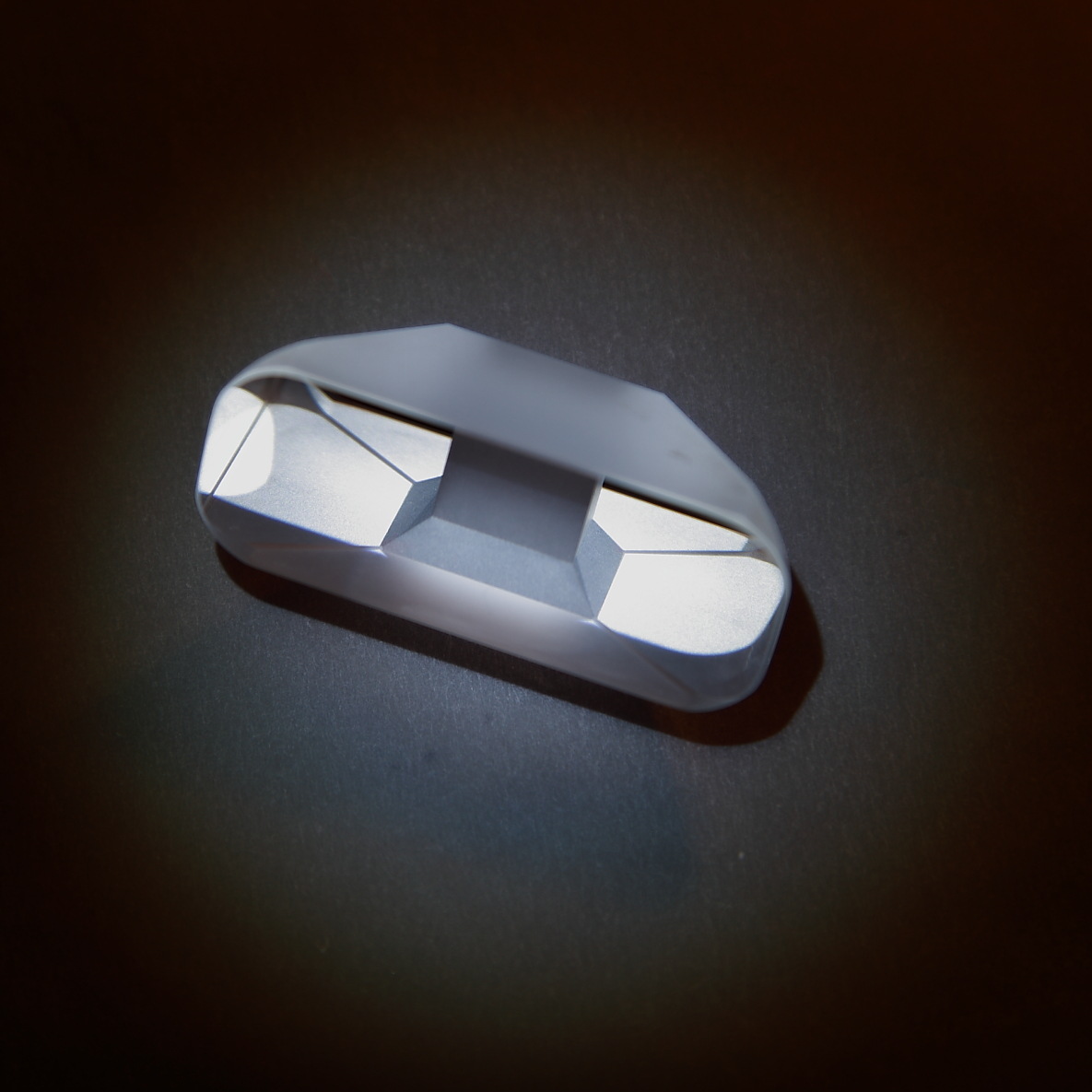

Dove Prism
Specification:
| Material | BK7 grade A optical glass |
| Dimension Tolerance | +0.0/-0.2mm |
| Clear Aperture | >85% |
| Surface Quality | 60-40 scratch and dig |
| Angle Tolerance | < 3 arc minutes |
| Flatness: | λ/2@632.8nm |
| Protective Bevel | 0.25 mm x 45° |

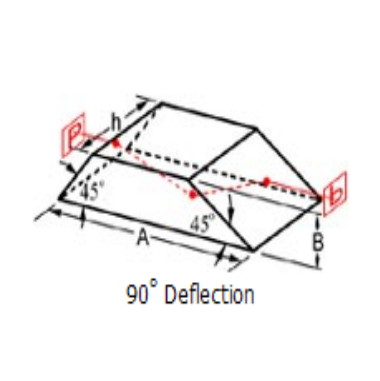

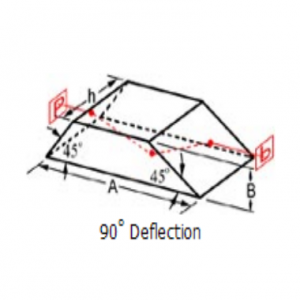

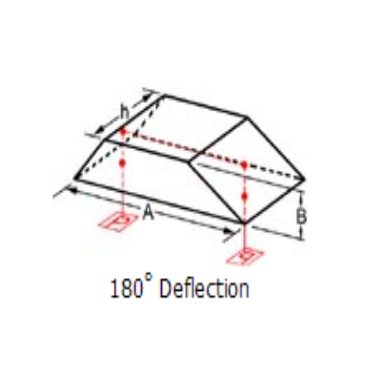

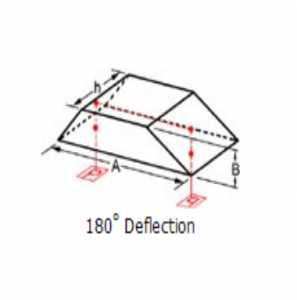

Dove Prism Standard Products:
|
Part No. |
Material |
Model |
A (mm) |
B (mm) |
h (mm) |
|
TDP101 |
SF11 |
180° |
9.3 |
2.6 |
1.3 |
|
TDP102 |
SF11 |
180° |
14.0 |
5.0 |
2.6 |
|
TDP103 |
BK7 |
Dove |
21.1 |
5.0 |
5.0 |
|
TDP104 |
BK7 |
Dove |
42.3 |
10.0 |
10.0 |
|
TDP105 |
BK7 |
Dove |
63.4 |
15.0 |
15.0 |
|
TDP106 |
BK7 |
180° |
80.0 |
20.0 |
20.0 |
Note: Other sizes, material and coatings are available upon request.
