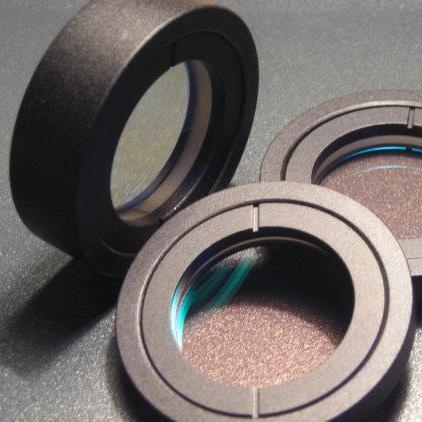

Polarizing Rotator
Specification:
| Material | Crystal Quartz |
| Dimension Tolerance | +0.0,-0.1 mm |
| Optical Angle Orientation Tolerance | ±0.1° |
| Rotation Accuracy | < 5 arc minutes |
| Wavefront Distortion | λ/4 @632.8 nm |
| Wavelength Range | 350-1300 nm |
| Parallelism | < 10 arc seconds |
| Surface Quality | 20-10 scratch and dig |
| AR/AR Coating | R < 0.2% at central wavelength |
| Rotation | counter-clockwise (left-handed, standard) |
| Standard Wavelength | 532nm, 808nm, 1064nm |
Polarization Rotator Standard Products:
|
Ф(mm) |
45° |
90° |
||
|
Uncoated |
Coated |
Uncoated |
Coated |
|
|
Part No. |
Part No. |
Part No. |
Part No. |
|
|
10.0 |
TPR101 |
TPR111 |
TPR201 |
TPR211 |
|
12.7 |
TPR102 |
TPR112 |
TPR202 |
TPR212 |
|
15.0 |
TPR103 |
TPR113 |
TPR203 |
TPR213 |
Note: Other sizes, wavelengths and coating are available upon request.
